FBFC Series

Cooling Only

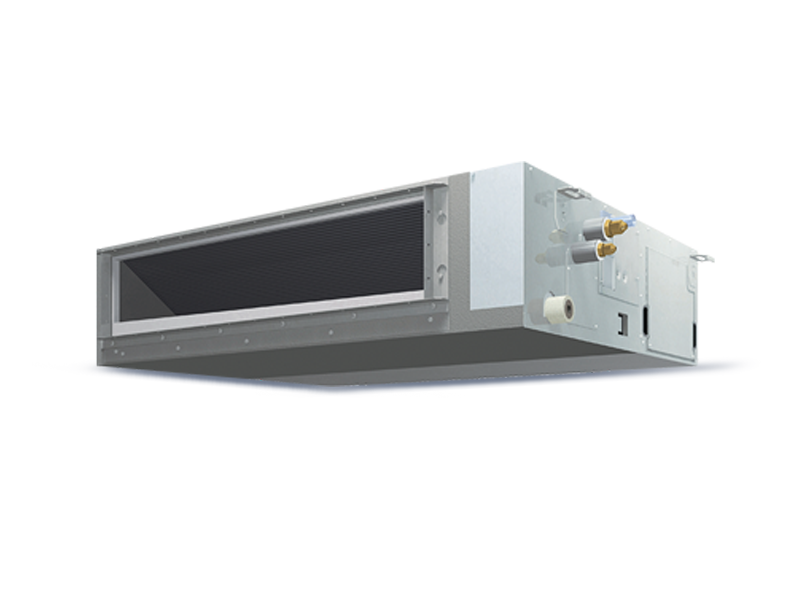

FBFC-DVM4

Designed for modern spaces where comfort and flexibility matter, the FBFC Series Middle Static Pressure Duct unit delivers reliable performance in a discreet, compact form. Its slim design allows seamless installation within tight ceiling spaces, while adjustable airflow ensures consistent, quiet comfort throughout the room.
Inverter
Cooling Only
R32
FBFC-DVM4

What's included?

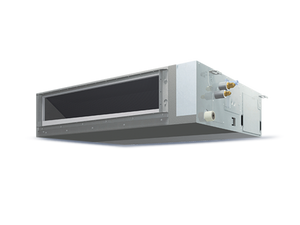

Indoor Unit

Indoor Unit

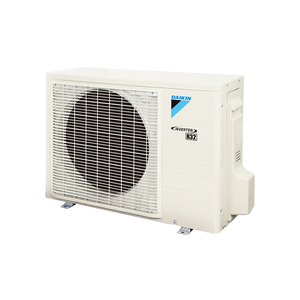

Outdoor Unit

Outdoor Unit

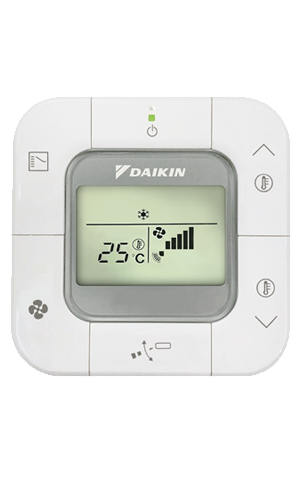

Simplified Remote Controller

Simplified Remote Controller

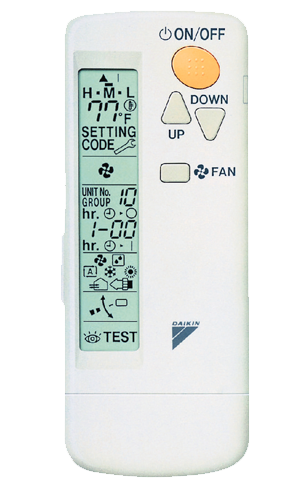

Wireless Remote Controller (Optional)

Wireless Remote Controller (Optional)

Documents

Brochure / Flyers

Technical Specifications

System Name Model Name DK-BIM Library Links Cooling Air Flow (Indoor Unit) Dimensions (IU) Max Pipe Length Max Level Difference Weight
Indoor Unit Outdoor Unit (BTU/h) (kW) (l/s) H x W x D (mm) Indoor Unit (kg) Outdoor Unit (kg)
FBFC-DVM4 Series (SINGLE PHASE)
FBFC50D-FJ FBFC50DVM4 RZFC50DVM4 17,000 5.0 258.3/200/50 245 × 700 × 800 30 15 26 34
FBFC60D-FJ FBFC60DVM4 RZFC60DVM4 20,500 6.0 258.3/200/50 245 × 700 × 800 30 15 26 34
FBFC71D-FJ FBFC71DVM4 RZFC71DVM4 24,200 7.1 416.7/333.3/275 245 × 1,000 × 800 50 30 36 37
FBFC85D-FJ FBFC85DVM4 RZFC85DVM4 29,000 8.5 416.7/333.3/275 245 × 1,400 × 800 50 30 36 44
FBFC100D-FJ FBFC100DVM4 RZFC100DVM4 34,100 10.0 600/508.3/416.7 245 × 1,400 × 800 50 30 46 44

Key Features

Explore the advanced capabilities and features of our latest series.

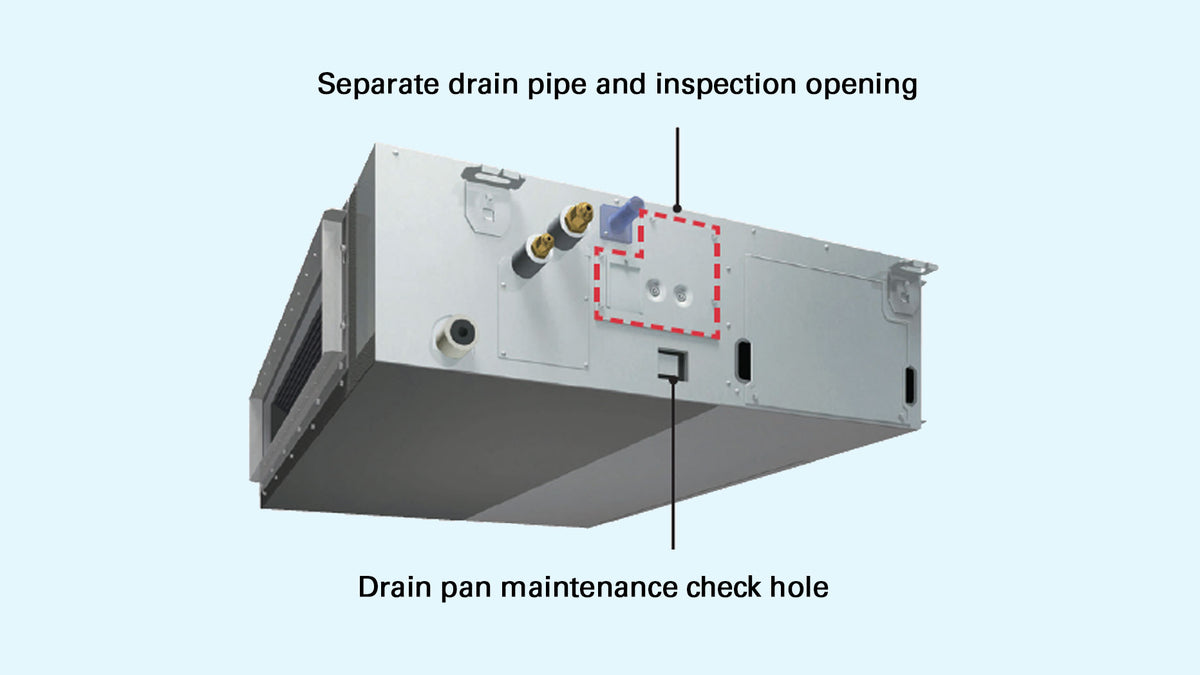

Easy Maintenance

Inspection and cleaning is facilitated by separating the drain pipe and inspection opening and by the drain pan maintenance check hole.

Easy Maintenance

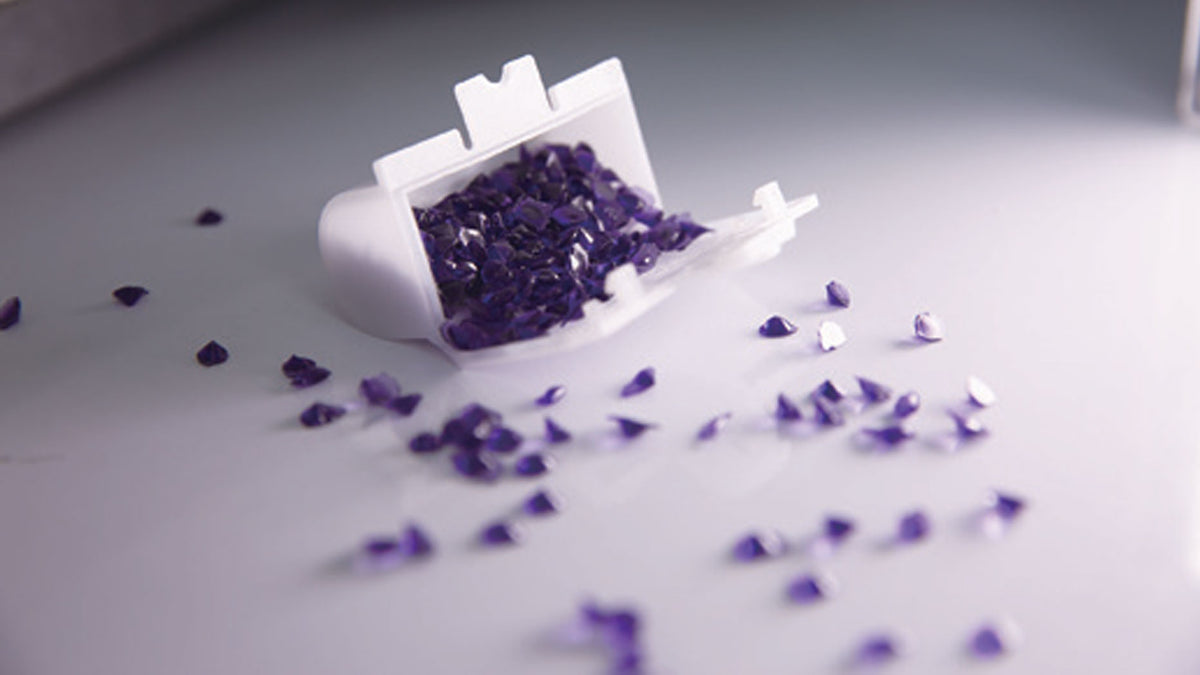

Cleanliness

Silver ion anti-bacterial drain pan Prevents the growth of slime, bacteria, and mould that cause odours and clogging. * Drain pan should be changed once every two to three years. Filter has anti-mould and antibacterial treatment

Cleanliness
